Browning SA-22 History

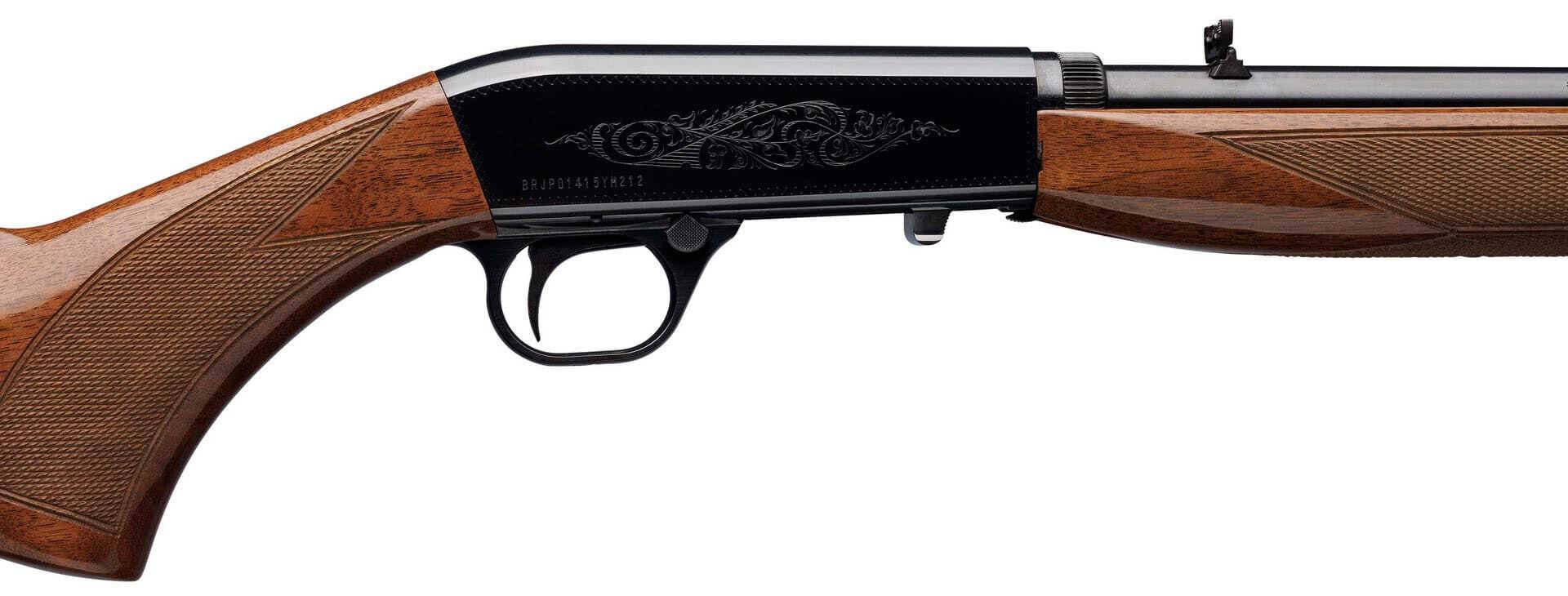

The Browning 22 Semi-Auto rifle, also known as the SA-22, is a takedown rifle developed by FN Herstal based on a John Browning patent. Production began in 1914 in Belgium, continued until 1973, and resumed in 1974 in Japan by Miroku. FN exported it to the U.S. in 1956, and Remington produced a licensed version from 1919-1935. China's Norinco created a similar model known as the Model ATD. The SA-22, chambered in .22 LR caliber, was the first production semi-automatic rifle in this caliber, earning it classic status. It features blued steel and walnut construction, downward ejection for user safety, and has been offered in various engraving grades.

With over half a million units sold since 1914, it is widely collected, particularly those manufactured in Belgium. Notable design elements include a lack of a side-mounted ejection port, a feature intended for a wide age range of users, and the initial loading port location on the top of the stock, later shifted to the right side of the buttstock in subsequent models.

Browning SA-22 Cleaning Guide

1. Frequency: Clean every 500-1000 rounds or as needed.
2. Disassembly:
   • Remove the barrel assembly.
   • Remove the trigger/bolt assembly.
3. Cleaning:
   • Use a toothbrush to clean the trigger/bolt assembly.
   • Spray dry lube inside the receiver and on the trigger/bolt assembly.
   • Add one drop of oil on the rails.
   • Consider using Gun Scrubber for stubborn buildup.
4. Cartridge Guide (CG):
   • Some users routinely remove the CG for cleaning, while others don't.
   • If removing, take precautions like removing the CG spring first.
   • Clean the CG area thoroughly to prevent buildup.
5. Cleaning Agents:
   • Shooter's Choice solvent or Hoppe's #9 for general cleaning.
   • Brake Cleaner or mineral spirits for degreasing.
   • Xylene is a more effective cleaner in some cases.
6. Lubrication:
   • Use dry lubricants.
   • Apply minimal oil, focusing on critical areas to avoid excessive buildup.
7. Bolt Maintenance:
   • Soak the bolt in mineral spirits.
   • Wipe clean and add one drop of oil to the springs.
   • Pay attention to the front of the bolt where extractors are located.
8. Receiver Maintenance:
   • Clean inside the receiver with solvent and a brush.
   • Use a pick to remove gunk.
   • Consider occasional disassembly for a deep clean.
9. Additional Tips:
   • Be cautious with the amount of force required to remove the CG.
   • Check for play developing at the barrel/receiver joint and address as needed.
   • Monitor the rifle's performance, especially with different types of ammunition.

Remember, individual experiences may vary, so adapt the cleaning routine based on the specific needs and conditions of your Browning SA 22.

Browning SA-22 Serial Number Lookup

Browning SA-22 Japanese Made Barrel Work Tips

Browning SA-22 Accuracy Review

Browning SA-22 Rifle Disassembly

Browning SA-22 Specifications

• Type: Blowback, semiautomatic rimfire
• Caliber: .22 Long Rifle
• Capacity: 11+1 tubular magazine
• Barrel: 16.25 in. hammer-forged blued steel, 1:16 RH twist
• Overall Length: 355⁄8 in
• Weight: 6 lb., 10 oz.
• Stock: Black walnut w/18-lpi cut checkering
• Trigger: Non-adjustable; 3 lb., 9 oz. pull (measured)
• Safety: Two-position transverse
• Sights: None; cantilever Picatinny optics rail
• Price: $940
• Manufacturer: Browning
